SEGMENT BALL VALVE AND MC PULP VALVE

The KS series v-port segment ball valve is primarily intended for flow control, and it can also be used for shut-off operation. The V-notch port on the segment ball contributes to strong shear stress to cut through media with fibers and particles. Consequently, this v-port segment valve is a good general control valve for most pulp and paper process applications, or similar flow contains fibers and particles.

We have a specially designed Segment ball valve for 8-19 % medium consistency applications called MC PULP Valve. The valve provides an optimized flow path for medium consistency pulp. The flow path is continuously increased to eliminate restrictions where material may build up. The outlet flange is one size bigger than the inlet to ensure this V-contoured flow path enables to control small capacities without risk of dewatering.

These valves are mostly used in these applications Pulp and Paper/Waste Water Treatment/ Food and Beverage/Chemical Plants/ Power Plants/ Steel Industry/Etc.

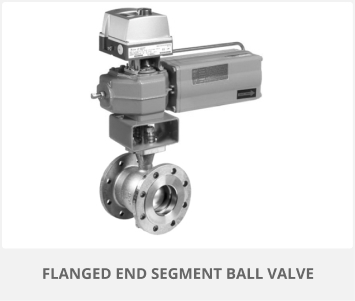

flanged-end-segment-ball-value

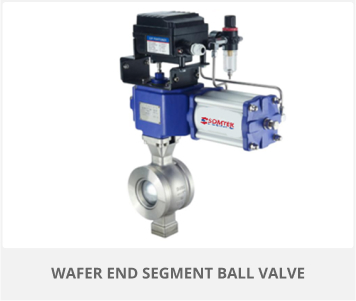

wafer-end-segment-ball-value

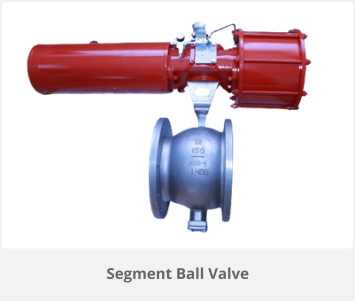

segment-ball-value

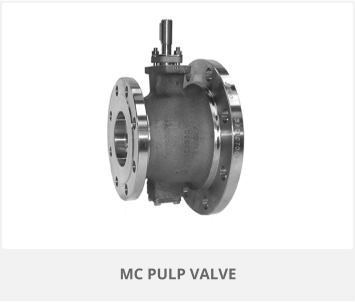

mc-pulp-value

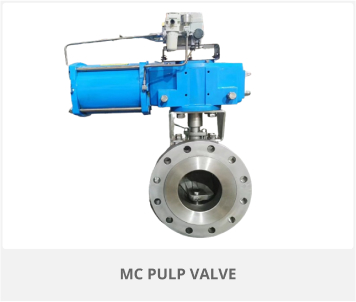

mc-pulp-value-2
Design standard:

ASME B16.34

Face To Face: Flanged:

ANSI/ISA 75.08.02 / ASME B16.10 and special for MC pulp Valve

Testing standard:

Shell test – API 598, Seat leak – ANSI FCI 70-2

about
Somtek can offer segment ball valve in the following materials WCB, CF8, CF8M, CF3M, Sm0254,Super Duplex Titanium
DESIGN FEATURES:
  • Single-piece body prevents leaks caused by separate flanges or locking rings.
  • Anti blow out stem feature (safety feature)
  • Nitriding/Tungsten Carbide/Stellite Alloy/Nickle Base Alloy plating are available for abrasive media.
  • Stem is finely grounded to match actuator excellently, which prevents rocking motion and potential failure of the v-port segmented valve.
  • Close-fit spline or pin-key are available for stem-segment ball connection to provide reliable transmission without motion lost or dead band.
  • Special seat design eliminates cavity between seat and valve body. This, consequently, prevents media from jamming between seat and body, ensure reliable sealing.
  • Specially designed V-notch ball provides strong cutting stress and tight sealing. Well ground notched ball surface ensures small operating torque and tight seal, especially for metal seated segment valve.
TECHNICAL INFORMATION:
  • Size Range: 25- 500 mm( 1” – 20”)
  • Pressure Rate: DIN PN10, 16, 25, 40,63; ANSI 150,300,600
  • Body Material: WCB, CF8, CF8M, CF3M, Sm0254,Super Duplex Titanium
  • Ball/Seat: CF8+HCr/304+STL, CF8M+HCr/316+STL, CF3+HCr/304L+STL, Devlon/PEEK/PCTFE.
  • Nitriding/Tungsten Carbide/Stellite
  • Alloy/Nickle Base Alloy plating
  • End Connections :Flange Type / Wafer Type (Manfacturer Std.)
  • Temp. Range:290C ~ 2400C with Soft Seat and 290C ~ 3500C with Metal Seat
  • Seal Tightness:Metal Seated valves have Class IV (standard), Class V (withTungsten Carbide coated trim) and Soft Seat have Class VI
  • Valve Trim Rotation:Clockwise to close
  • Operation : Lever , Gear , Pneumatic , Electrical
