RESILIENT SEATED BUTTERFLY VALVE
Somtek offers centric design valve which features a cartridge type seat, streamlined disc and strong stemto-disc connection for easy use in many industrial applications such as food and beverage, pulp and paper, chemical, mining, water treatment, power plants, etc..
We can offer the following type of Resilient seated butterfly valves
1. Wafer type
2. Lug type
DOUBLE OFFSET BUTTERFLY VALVE
Series KVDO Wafer high performance butterfly valve provides a cost-effective solution for a wide range of applications where bubble-tight shut-off is required. Utilizing an eccentric disc and offset shaft, the design incorporates the flexible-lip sealing system into a lightweight, compact body. The result is that in many cases the valve can replace globe valve and gate valve yet easier operating, longer lasting and lower cost. Significant performance makes the valve widely used in many applications such as Airport refueling, Hydrocarbon processing, HVAC, Air treatment, Chemical processing, Purified gas, Steam and vacuum services, Potable water, Powder and pulp processing, etc. Wafer design makes the valve convenient for connection between flanges and save length in pipe line.

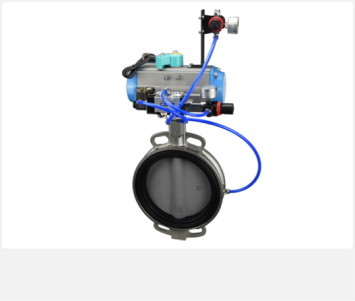

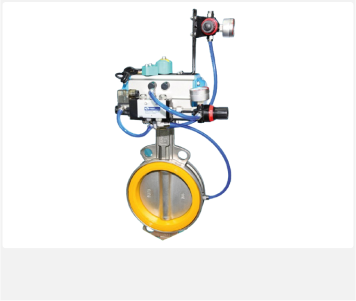

Inflatable Seated Butterfly Valves
Series KVRL INF inflatable seated butterfly valves use air pressure to expand the seat against the disc, providing even pressure distribution for a bubble-tight seal in every close. Because the seat has no contact with the disc during valve opening and closing, there is minimum disc to seat friction. In actual comparison tests and documented field applications, an KVRL INF butterfly valve lives more than one million cycles. For dry solids, gases, slurry and high abrasion applications, the KVRL inflatable seated butterfly valve is unsurpassed.
Wear Butterfly valves
Series KVRL Abrasion resistant centric butterfly valves feature a lock type seat, spherical sealing surface disc and strong stem-to-disc connection for easy use in many industrial applications especially Mining Industry, dry bulk conveying, paper mills, and all users of Slurry and High Abrasion applications.
With the field replaceable seat fully isolating the body and shaft from the media, and the heavy duty construction for severe vacuum up to 285 psi, the valves are also widely used in food and beverage processing, vacuum desulphurization plants, shipbuilding, HVAC, etc.
Design & Manufacturing:
BS EN 593 / API 609 cat A
Inspection and Testing:
API 598 /BS EN 12266-1
Face to Face :
short wafer as per ISO 5752 Tab 5 /API 609 cat A
Top flange drilling :
ISO 5211
DESIGN FEATURES:
- ISO5211 top flange together with stem square suitable for direct mounting of actuators
- Stem anti-blowout design keep safety in field use
- Dirtscraper prevents moisture penetrating into the shaft area
- Multi-standard alignment holes suitable for various standard of flanges of EN1092 PN10, PN16, ASME B16.5 CLASS150, JIS B2239 10K, 16K, BS 10 Table D, Table E
- Suitable for high pressure and full vacuum service due the use of a cartridge seat design
- No exposed pins or bolts for stem-to-disc connection
- No need for flange gaskets
- No risk of damage to the valve during installation in closed position
- Bubble-tight shut of at full pressure rating
- Large flow capacity and enough strength because of streamline disc design
- Plug with O-ring sealing eliminates any leakage from the stem
TECHNICAL INFORMATION:
- Size: 50 mm to 2000 mm(2” to 78”)
- MOC : CI, SS, Aluminum, Ductile Iron, WCB.
- Seat : EPDM,NBR,FPM
- End connection : Wafer, Lugged, Double Flanged
- Operation : Lever , Gear , Pneumatic , Electrical
Somtek can offer the above valves with Stem extension
Design & Manufacturing:
BS EN 593 / API 609 cat A
Inspection and Testing:
API 598 /BS EN 12266-1
Face to Face:
API 609 Category B valve Wafer
Top flange drilling:
ISO 5211
DESIGN FEATURES:
- One-piece stem design with ISO 5211 square drive
- ISO 5211 direct mounting flange on the valve body
- Easy-adjust gland packing accessible with actuator mounted in place
- Belleville washers on the gland nut offer reliable primary sealing between shaft and packing
- Retaining ring for both equably pressing on packing and stem blowout proof
- Multiply rows of RPTFE chevron for soft seat valve and Graphite chevron for fire safe and metallic seat
- Extended neck for pipe insulation
- Self-energized seat resulting in longer life and reduced maintenance
- Pin-less shaft to disc connection makes the valve convenient for parts replacement and reliable even under corrosion
- Seat retainer supports the seat and allows for easy changeout
- Double offset disc reducing the valve torque
- Alloy harden disc surface for metal seat increases the sealing life time
- Integral disc stop prevent disc from over travel
- Soft seat, fire safe seat and metallic seat are replaceable each other
- PTFE lined SS316 bearing support stem and increase service life
- Thrust ring for anti-blowout and anti-static
TECHNICAL INFORMATION:
- Size: (3” to 24”)
- PRESSURE CLASS” CL150 , CL300
- MOC : CF8M, WCB.
- Seat : RPTFE,SS316+RPTFE,SS316
- End connection : Wafer, Lugged.
- Operation : Lever , Gear , Pneumatic , Electrical
Design & Manufacturing:
BS EN 593 / API 609 cat A
Inspection and Testing:
API 598 /BS EN 12266-1
Face to Face:
EN558 Series 20, API 609 Table 1
Flange accommodation:
EN1092 PN10/16, ASME B16.5 Class150
DESIGN FEATURES:
- Blow out proof shaft with position indication
- ISO5211 top flange together with stem square suitable for direct mounting of actuators
- Stem anti-blowout design keep safety in field use
- Dirt-scraper prevents moisture penetrating into the shaft area
- Bearings substantially reduce operating friction and torque requirements, eliminating any metal-to-metal contact, thus preventing shaft galling and freezing
- Oversized inlet port allows quick valve pressurization / depressurization
- O-ring shaft seals ensure positive sealing under the most adverse conditions
- Thin disc stem for excellent flow characteristics and bidirectional shut off
- Easily replaceable, the inflatable molded seat has a smooth contour locking design to minimize stress and hold the seat in place, eliminating any need for flange gaskets
- O-ring provides long lasting positive seal of seat inflation pressure
TECHNICAL INFORMATION:
- Size: 25 mm TO 600 mm
- MAX WORKING PRESSURE: 10 Bar
- MOC : DI, CF8
- Seat : NBR, NITRILE, Copolymer EPDM-HT, Polyurethane, Fluoelastomer
- End connection : Wafer
- Operation : Pneumatic
Design & Manufacturing:
BS EN 593 / API 609 cat A
Inspection and Testing:
API 598 /BS EN 12266-1
Face to Face:
EN558 Series 20, API 609 Table 1
Flange accommodation:
EN1092 PN10/16, ASME B16.5 Class150
DESIGN FEATURES:
- Blow out proof shaft with position indication
- ISO5211 top flange together with stem square suitable for direct mounting of actuators
- Dirt-scraper prevents moisture penetrating into the shaft area
- Stem anti-blowout design keep safety in field use
- Extended valve neck allowing Insulation
- Body locating holes for proper installation and centering of the valve between flanges
- Suitable for slip-on flange and plate flanges. The sealing grooves on the tightening face eliminates roll out of seat
- The field replaceable seat fully isolates the body and shaft from the media. In addition the improved seat design provides elevated dead end shutoff performance
- High-strength through stem with close tolerance of square driving the disc fast and firmly, eliminates stem retention
- components being exposed to the media
- Thin disc stem for excellent flow characteristics and bi-directional shut off
- For rubber seat, calculated curve mating with disc closing travel allows better performance in reducing friction, torque and wear than normal design. For PU seat, cylindrical sealing area kept for convenience of production, also PU is enough wear resistant
- A additional back seat O-ring secures increased valve performance
TECHNICAL INFORMATION:
- Size: 50 mm TO 2000 mm
- MAX WORKING PRESSURE: 20 Bar
- MOC : CI, DI, CS,SS
- Seat : NBR, NITRILE, Copolymer EPDM-HT, Polyurethane, Fluoelastomer,PTFE
- End connection : Wafer, Lug
- Operation : Pneumatic, Lever, Gear, Electrical
