Typical Applications
- Some typical applications are: Silicon Powder,Alumina Powder,Dry Coal Powder,Limestone Slurry,Gypsum Slurry,Plaster,Fly Ash,Mining Ore,Coal Powder Injection,Metallurgical dust,Thermal Power plant FGD,Petroleum Solid Catalyst,TiO2 suspension with sulfuric acid,Ammonia solution with powder,Hydrochloric Acid,Liquid Chlorine,Bulk Material.
TYPES OF VALVES:

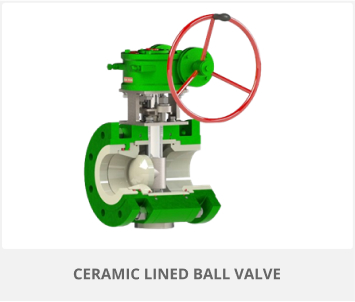

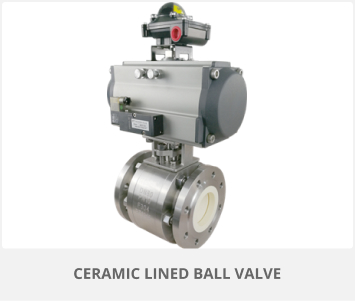

- Ball valves

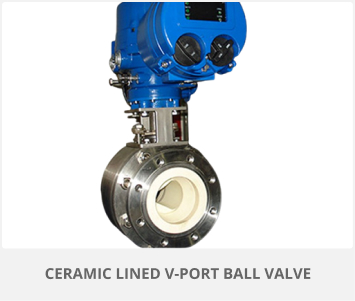

- V-port Ball valves

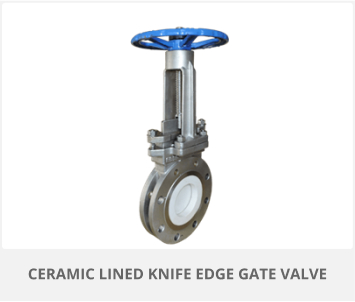

- Knife edge gate Valve

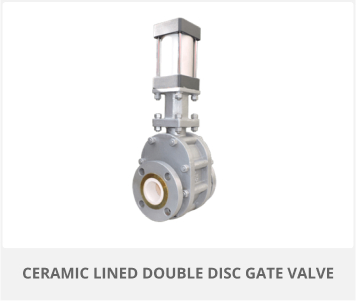

- Double Disc Gate Valve

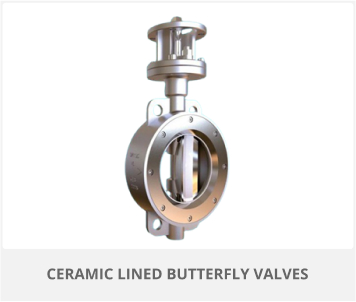

- Butterfly Valve
DESIGN FEATURES
- Ceramic Lined valve have excellent performance and much longer life time than soft seated and metal seated valves in most corrosive and abrasive applications.
- Wear Resistance: Abrasive slurries have little effect on its rock-hard surfaces.
- Corrosion Resistance: It is virtually inert to acid bases and most other corrosives.
- Impact Resistance: The composition of the materials and the advanced process technology result in high mechanical strength and toughness.
- Temperature Resistance: High operating temperatures and thermal shock are not a problem. The melting point of Mg-PSZ ceramic is well beyond the valve limits of 350°C.
- Cavitation Resistance: Cavitation related problems are sharply reduced due to the extreme hardness of the ceramic material
Technical Specifications:
- SIZE RANGE: DN15 TO DN250- Ball Valves, DN25 to DN400- Double Disc Gate Valve, DN50 to DN300- butterfly valve and DN50 to DN500- Knife Edge gate valve.
- PRESSURE CLASS: PN 10,16,25,40, CLASS 150,300
- END CONNECTION: FLANGED END, WAFER END
- MOC: WCB,CF8,CF8M, TITANIUM BODY LINING: Al2o3 , Zro2
