PRESSURE REDUCING VALVES

A Pressure Reducing Valve (PRV) is an Automatic Control Valve designed to reduce a higher unregulated inlet pressure to a constant, reduced downstream (outlet) pressure regardless of variations in demand and/or upstream (inlet) water pressure. A pressure reducing control valve balances the steam pressure with a spring in a steam system. This basic concept is used to manufacture the majority of modern pressure reducing control valves.

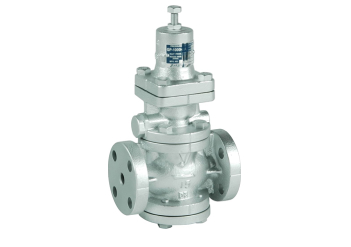

reducing-values-1

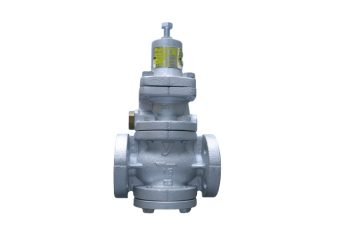

reducing-values-3

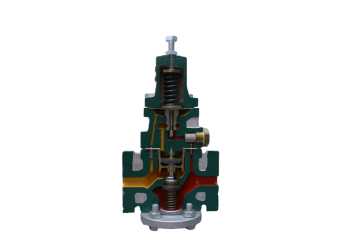

reducing-values-4
DESIGN FEATURES:
  • Significantly improved workability and durability compared with conventional pressure reducing valves.
  • Spherical main valve offers great sealability and great reduction of valve seat leakage (compliant with ANSI Class IV).
  • Compliant with SHASE-S106 Pressure Reducing Valves (by the Society of Heating, Air-Conditioning and Sanitary Engineers of Japan).
  • Simple and robust internal structure.
TECHNICAL SPECIFICATIONS:
  • Inlet Pressure: 0.1 to 1.0 Mpa
  • APPLICATION: Steam
  • Reduced pressure: 0.05 to 0.9 Mpa(90% or less of inlet pressure)
  • Max Temperature: 2200C
  • BODY MOC: Ductile Cast iron
  • DISC, SEAT, FLOAT: SS
  • CONNECTIONS: Screwed End, Flanged End
