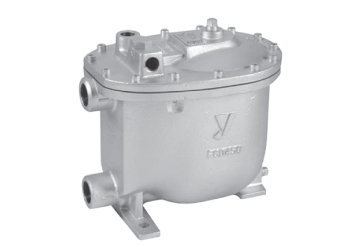

CONDENSATE PUMPS

It uses the principle of traps, relying on steam, air and other gases as power to transport condensed water from the low pressure area to the high pressure area, or from the negative pressure area (vacuum) to the normal pressure area.

consedent-pumps
DESIGN FEATURES:
  • Most appropriate for discharge of low pressure condensate at air-conditioning unit or heating unit.
  • No electrical equipment required since it utilizes inexpensive steam pressure or air pressure for operation.
  • Maintenance inspection is easily done due to main parts are attached to the cover.
  • Running costs can be significantly reduced since gas for the operation is consumed only at the time of pumping.
TECHNICAL SPECIFICATIONS:
  • Sizes: 1” to 3”
  • APPLICATION: Steam condensate, Non-hazardous fluid
  • MAXIMUM MOTIVE PRESSURE: 0.03 TO 1 Mpa
  • MAX TEMPERATURE: 1800 C
  • BODY MOC: Ductile CI
  • TRIM MOC: SS
  • FLOAT: SS
  • END CONNECTION: JIS Rc screwed
