Flush Bottom Valve

The Flush Bottom Valves designed by us to provide drainage and dead space free shut off for reactors, vessels and storage tanks. This is accomplished by placing the valve seat flush with the bottom of the vessel, which eliminates any buildup of product within the vessel nozzle itself.

Valve sizes are designated by two numericals, First number stands for size of inlet flange connection that is fixed to the tank or vessel bottom pad, Second number stands for port size as well as outlet pipe and its flange size. Inlet flanges are always one size larger in size than the outlet flanges.

bottom-outlet-vall-value

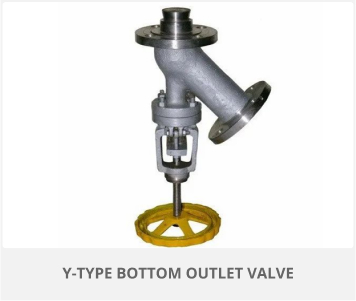

y-type-bottom-outlet-value

ASME B16.5 flanges

Top flange according to ISO 5211

Design compliance to ASME B16.34

Leakage test according to DIN EN 12266-1 Rate A

about
Somtek can offer flush bottom valves with Socket ,Screwed ,Butt weld and flange ends ,jacketed, over size flanged with jacketing, nipple extension & wafer type
DESIGN FEATURES:
  • Full bore
  • Soft/metallic Seated
  • Straight/inclined seated
  • Fire-Safe design
  • Spring loaded Sealing System
  • Minimized dead space
  • ASTM materials (316 Stainless Steel)
  • Anti blowout stem
  • Effective in handling Highly Dense and Viscous Fluids & Slurry
  • Jacketed bodies are also available to maintain the liquid in flowing state
TECHNICAL INFORMATION:
  • VALVE TYPES : Soft Seated & Metal seated
  • Size & Class : 15mm to 150mm #150 , #300 (metal seated up to size 100mm)
  • MOC : Carbon steel, Alloy steel , Stainless Steel ; Duplex and Super Duplex Stainless steel Grades
  • Seat : PTFE ,RPTFE (GFT or CFT), DEVLON , NYLON
  • End connection : Flange , Socket , Butt weld , Screwed & wafer
  • Operation : Lever , Wrench , Gear , Pneumatic , Electrical & Chain wheel
