STREAM TRAPS

Steam traps are a type of automatic valve that filters out condensate (i.e. condensed steam) and non-condensable gases such as air without letting steam escape. In industry, steam is used regularly for heating or as a driving force for mechanical power. Steam traps are used in such applications to ensure that steam is not wasted. There are Float, Thermodynamic and mechanical in our ranges

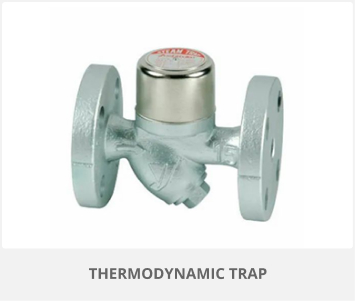

thermodynamic-trap

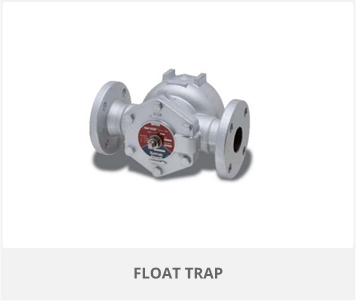

float-trap
DESIGN FEATURES:
  • They can discharge condensate effectively without retention, and realize energy saving steam system without steam loss.
  • Incorporated thermostatic air vent discharges air inside the piping and shortens warming-up time.
  • Flow direction can be switched easily without disassembly such as detaching the cover.
  • Since the main parts are installed on the cover, it is possible to disassemble the cover with the body installed on the piping so the inspection and parts replacement can be conducted easily.
  • Super energy saving since intermittent operation removes air adiabatic wall in the heat exchanger and increases heat efficiency considerably.
TECHNICAL SPECIFICATIONS:
  • Nominal Sizes: 15mm-50mm
  • APPLICATION: Steam Condensate
  • Working pressure: 0.01 to 2.1 Mpa
  • Max Temperature: 2200C
  • BODY MOC: Ductile Cast iron
  • DISC, SEAT, FLOAT: SS
  • CONNECTIONS: Screwed End, Flanged End
