V-PORT Ball Control Valve

A v-port ball valve is a control valve with a v-shaped seal or v-shaped ball. The 'v' shape allows for better fluid control. The molded v-bore differentiates the v-port ball valves from other ball valve types.

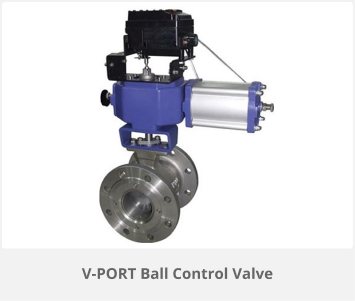

v-port-ball-control-value

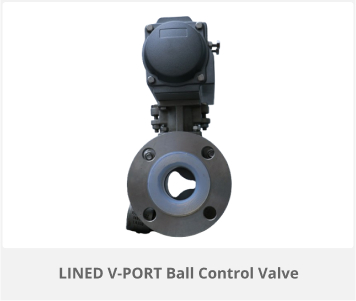

lined-port-v-port-ball-control-value
TESTING STANDARDS:
  • Design Standard: ASME B16.34
  • Testing Standard: API 598, FCI 70-2
  • Face To Face: ASME B16.10
DESIGN FEATURES:
  • Increased Linear Response
  • Exceptional Characterized Control
  • High Rangeability
  • High Flow Capacity
  • High Pressure Drops
  • Bidirectional Bubble-Tight Shutoff
TECHNICAL SPECIFICATIONS:
  • SIZES: ¼” TO 12”
  • BODY MOC’S: Stainless Steel (CF8M), Carbon Steel (WCB)
  • Temperature Range: -46°C to 343°C
  • Maximum Allowable Operating Pressure: ASME Class 150, 300, 600
  • END CONNECTION: Threaded, Socket Weld, Butt Weld, Flanged End
