DRAIN SEPARATOR

Condensate (drain) in steam and air piping causes a decline in thermal efficiency, water hammer, corrosion of devices, valves, pipes, and many other problems. The drain separators are capable of efficiently separating condensate from steam and air with the aid of centrifugal force generated from the configuration of the passage. In normal condition, use a separator of the same size as piping for both steam and compressed air systems.

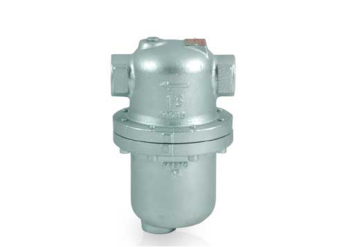

drain-seperators

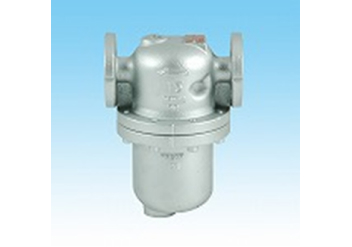

drain-seperators-3
DESIGN FEATURES:
  • High efficient drain separation due to cyclone type.
  • Extremely low pressure loss.
  • Trouble-free by minimizing the number of moving parts.
TECHNICAL SPECIFICATIONS:
  • SIZE: ½” TO 6”
  • APPLICATION: Steam, Air
  • MAXIMUM PRESSURE: UPTO 2 Mpa
  • MAXIMUM TEMPERATURE: 2200C
  • BODY MOC: Ductile Cast Iron
  • NOZZLE: CI
  • END CONNECTION: JIS Rc screwed, JIS 10K/20K FF flanged
